Automated Sorting Weighing Conveyor Belt And Sorting Weight Checker

Product Categories

Food Metal Detector [295]
Food Grade Metal Detector [66]
Conveyor Belt Metal Detector [111]
Automatic Check Weigher [32]
Conveyor Weight Checker [100]
Food X Ray Machine [120]
Needle Metal Detector [49]
Pharmaceutical Metal Detector [44]
Walk Through Metal Detector [71]
Metal Separator Machines [82]
X Ray Inspection System [73]
Weight Sorting Machine [17]
Conveyor Metal Detector [55]
Combo Metal Detector And Checkweigher [39]
Tablet Metal Separator [95]

GUANGDONG SHANAN TECHNOLOGY CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Automated Sorting Weighing Conveyor Belt And Sorting Weight Checker

Name: Automated Sorting Weighing Conveyor Belt And Sorting Weight Checker
Brand: SHANAN
Price: 1 USD

Quality Automated Sorting Weighing Conveyor Belt And Sorting Weight Checker for sale

Brand Name : SHANAN

Model Number : SACW-210

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 100 set/month

Delivery Time : 15work days

Packaging Details : Box

function : online weight checking

Type : weight detector

Color : siliver

Function : Weighing inspection

application : Nuts and Dried Fruit

product name : Overload weight checker

Display Type : D display

Power Supply : 110v or 220v

Accuracy : ± 0.1g

Rated Load : 5 KG

Warranty : 2 years

Contact Now

Automated Sorting Weighing Conveyor Belt and Sorting Weight Checker

FDA Food Grade Automatic checkweigher with pusher rejector designed specifically for the food industry.

About Shanan Company Profile Automated Sorting Weighing Conveyor Belt And Sorting Weight Checker

Product Overview

This weighing and sorting machine is designed for various automation lines, providing automatic weight detection on logistics conveyor systems. It performs high-tech automated sorting with upper and lower limit checks or weight-based product testing. The universal weighing system is ideal for online automatic weighing of boxed products, parcel boxes, and single product sample packaging, detecting underweight items, missing installations, and attachment omissions.

Key Features & Advantages

Designed to increase productivity and efficiency
High-speed sampling control for faster operation and higher precision
10-inch large operation screen with user-friendly interface
Independent operation within 3 minutes
Reinforced stainless steel structure with IP65-68 waterproof option
Multiple recipe storage for easy product specification changes
Modular structure for simple maintenance and cleaning
Manual or automatic zero and dynamic zero tracking
EXCEL format and real-time data reporting with USB storage for over 1 year
Communication with PC and other smart devices
Centralized control of multiple checkweighers from one computer
Frequency control motor with adjustable speed

Applications

Suitable for testing single product weight acceptability and detecting packaging omissions. Widely used in pharmaceutical, food, beverage, electronics, healthcare products, daily chemicals, light industry, agricultural products, and many other industries. Ideal for boxed medicines and food industry applications.

Technical Specifications

Parts Name	Specification / Brand	Unit	Use Amount
Control system	Vfinder control system, 8 inch industrial touch screen	pcs	1
Weight sensor	Germany HBM	Pcs	1
Driving system	Delta	Pcs	1
Inverter	Delta	Pcs	1
Photoelectric switch	Taiwan Riko	Pcs	1
Motor Switch	CHNT	Pcs	1
Conveyor belt	White Shabaker	Pcs	1
Main conveyor belt roller	NSK Bearing	Pcs	1
Accessory conveyer belt	NSK Bearing	Pcs	1

Standard Features

Control Panel Exterior: Stainless Steel and Painted
Conveyor: Non-waterproof
Balance: Force Balance
Frame: Stainless Steel and Painted
Color D Touch Screen

Optional Features

Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)

Model Comparison

Model Name	VC-10	VC-15	VC-22	VC-30	VC-40	VC-25 (Two belt)	VC-100
Weight range (g)	3-100	3-300	10-1200	30-3000	50-1000	50g-25kg	1kg-100kg
Mini weight accuracy (g)	±0.1	±0.3	±0.5	±1	±0.5	±5g	±10g
Mini screen value (g)	0.01	0.1	0.1	0.1	0.1	0.5	1g
Max weigh speed (Bags/Minute)	20	330	210	180	180	50	20
Belt speed (Meter/minute)	0	16-118	13-96	13-96	13-96	13-78	3-15

Reject device options: Pin Rod / Push rod / air blast / divided flow / drop down / flap drop (Optional)

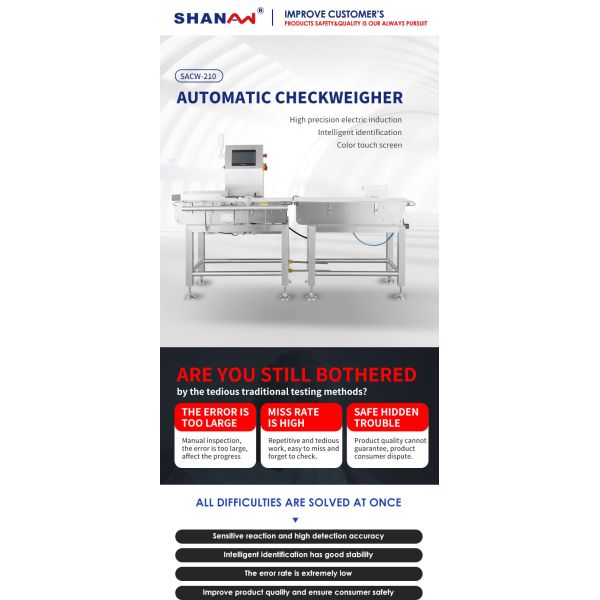

SACW-210 Model Specifications

Product model	SACW-210	Transfer speed	30~100m/min
Power supply	AC220V±10% 50HZ (60HZ)	Maximum speed	160 pcs/min
Rated power	0.15KW	Weighing conveyor belt size	400mm(L)*210mm(W)
Single weighing range	1.5-200g	Elimination method	Blow-out
Weighing accuracy range	±0.02g~±1g	Control System	High speed A/D sampling controller
Minimum scale	0.01g	Preset product number	2000pcs
Inspection item size	≤2800mm(L)*200mm(W)	Machine size	2100mm(L)560mm(W)1222mm(H)
Operation direction	Facing the machine, left to right	External air supply	0.6-1Mpa
Air pressure interface	Φ8mm	Working environment	Temperature: 0°C~40°C, Humidity: 30%~95%
Body material	Stainless steel 304 polished	Operation screen display	Chinese, English, Turkish, Spanish, etc.
Other standard equipment	Windshield (colorless and transparent), calibration weight	Height of belt surface from ground	650mm~750mm (can be customized)
Protection level	Protection level conforms to IP-65 international standard	Remarks	Accuracy may vary based on product dimensions and working environment
